PA301

Ultra-high performance photoacoustic detector

Improves laboratory productivity and safety
For solid, semi-solid and liquid samples
The quickness and the ease of use

Photoacoustic FTIR accessory that enables rapid analysis of solid, semi-solid and liquid samples

Versatile analysis with ultra-sensitive photoacoustic FTIR accessory

The PA301 photoacoustic FTIR accessory improves laboratory productivity and safety by enabling extremely versatile and rapid analysis of solid, semi-solid, and liquid samples in any form without sample preparation.

The insensitivity to sample surface morphology, the depth profiling capabilities, and contactless measurement provide wide applicability in many areas of chemical and biological research which no other single accessory can match.

Product contents

Photoacoustic detector with focusing mirror
Optical cantilever microphone with built-in laser readout interferometer

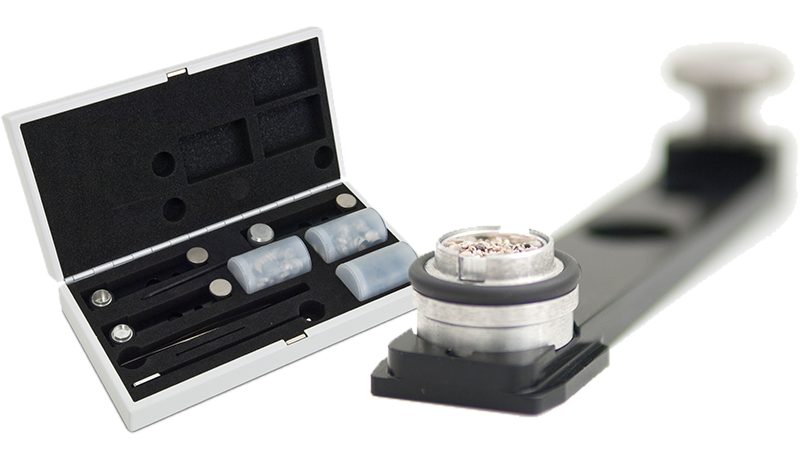

Removable sample cups for solid, semi-solid, and liquid samples
Carbon black reference
Vibration isolated detector mounting
Digital Signal Processing -module
Power supply (+12 VDC)
Cables to connect the modules and to connect to the FTIR instrument
Gas connector for purge gas with automatic valve contol and built in flow meter
Detector manual
Storage case

Specifications

Minimum detectable pressure variation in the PA301 sample cell: 2 μPa/√Hz (RMS)
Microphone sensitivity: Approx. 10 V/Pa
Rapid sample change without breaking the purge seal
Analog interface: BNC cable to detector input on the FTIR
Analog output: +/- 3.3 VDC interferogram signal
DSP analog output gain range: 0.02 – 20 in 10 step
Spectral range deﬁned by window material (from UV to far-IR)
Maximum sample size: 10 mm diameter, 9 mm height
Helium purge with automatic purge valve operation

Downloads

Applications

Dark samples (eg. bitumen, rubber, etc.)
Pharma quality control
Soil samples
Paper and wood analysis
Oil analysis
Tissue samples
Food analysis
Forensics
Cosmetics
Art Conservation
Polymeers
Paint and pigment analysis
Gemstones

All major brands are supported

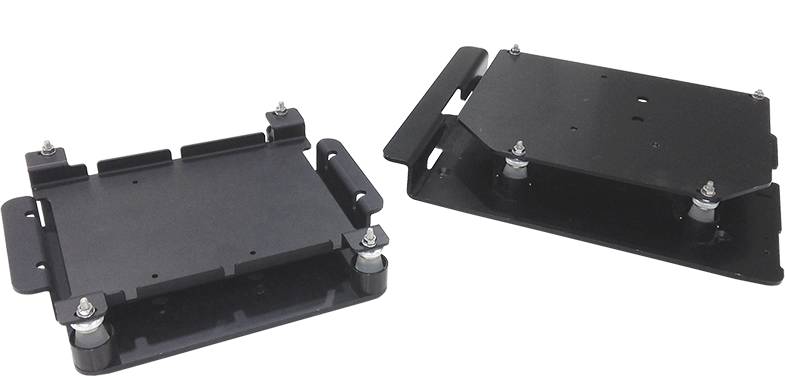

Connection to commercial FTIRs is provided by the baseplate

UV-region, IR-region, NIR- region

Spectral region is defined by the window material (user changeable)

Spectrum normalization

by carbon black reference. Comes with different size sample cups.

No sample

preparation

Contactless

measurement

100x faster

than other PAS solutions

High quality spectra can be obtained in just seconds

Due to the ultra-high sensitivity of the Gasera novel cantilever sensor, high quality spectra can be obtained in just seconds unlike in other available photoacoustic accessories. In fact the PA301 is over 100x faster that other competing PA solutions in the market. Furthermore, ambient air can be used as the carrier gas to obtain a signal-to-noise ratio (SNR) that is still significantly better compared to other commercial photoacoustic detectors used with helium carrier gas.

The quickness and the ease of use make the PA301 a must-have accessory for every lab!
