GASERA ONE PULSE

The multi-gas analyzer

Multi-gas monitoring solution
Class leading performance
Unbeatable price

Multi-gas monitoring with GASERA ONE PULSE

GASERA ONE PULSE is a versatile and easy to use multi-gas monitoring solution. It offers accurate ppb detection at an unbeatable price. It can be configured for a range of uses and is currently in use all over the world in detecting SF6 leakage, refrigerant leakage, anesthetic gas monitoring, emissions monitoring of greenhouse gases, soil analysis, occupational health and safety, photocatalysis, animal husbandry, and fume hood performance testing. The PULSE product line offers great flexibility and configurability to meet your specific needs.

Please get in contact and we can discuss your gas measurement requirements.

Measurable gases include

Anesthetics: desflurane, enflurane, isoflurane, sevoflurane etc.
Greenhouse gases: CF4, C2F6, R13, R-134a, CO2, N2O etc.
Tracer gases: SF6, R-134a, HFO-1234yf
Hydrocarbons: CH4, C2H2, C2H4, C2H6 etc.
Inorganics: CO, CO2, H2O, NO, NO2, N2O, NF3, NH3, SF6, SO2
VOCs: acetone, benzene, ethanol, formaldehyde, methanol, toluene, xylenes etc.

Specifications

Response time: dependent on user configurable channel integration (C.I.T.) and gas exchange routine. Typically from 5 seconds to a few minutes (model dependent)
Detection limit: gas and light source dependent. Typically from sub-ppb to sub-ppm
Dynamic range: typically 5 orders of magnitude (i.e. 100 000 times the detection limit)
Repeatability: less than 1% of measured value in operational conditions at the calibration concentration
Accuracy: limited by the calibration gas accuracy at the calibration concentration. Typically 2-5%
Temperature stability: ambient temperature change within the operational temperature range will not cause drift
Pressure stability: sample gas pressure change within the pressure range will not cause drift

Downloads

Applications

Animal husbandry
Fume hood performance testing
Greenhouse gases research
Occupational health and safety
Photocatalysis
Refrigerant leakage
SF6 leakage
Soil analysis
Tracer gas ventilation studies
Waste anesthetic gases

Detection limits and selectivity

Gasera’s patented cantilever enhanced photoacoustic technology delivers ppb level gas detection in the most challenging measurement environments and at an industry leading price.

This is achieved by the GASERA ONE PULSE’s unique measurement capabilities and advanced chemometric algorithms that use up to ten different measurement signals simoultaneously. This ensures that your target gases can be swiftly and accurately measured even in the presence of the most troublesome interferents, such as high levels of moisture where competitor systems cannot tolerate.

Gasera’s customer support team can work with you to configure the GASERA ONE PULSE to achieve the detection performance required for your application.

Configuration options

Several options enable even more versatile use of the multi-purpose GASERA ONE PULSE instrument.

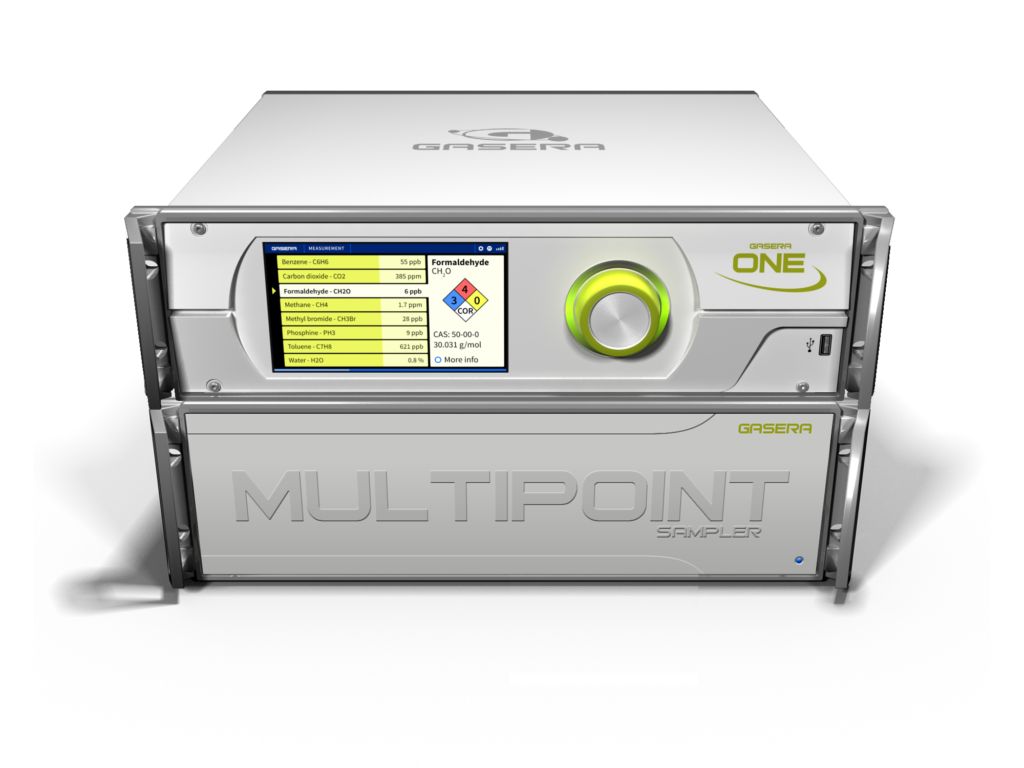

Multipoint sampling

GASERA ONE PULSE can be combined with our multi-channel sampling system to deliver even more gas monitoring capabilities and value. The multi-channel sampler enables an automated and programmable sampling sequence of up to 24 different gas measurement sampling points to each GASERA ONE PULSE instrument, providing a cost-effective solution for customers.

Different applications require a different set of target gases. Optimization is achieved with the selection of an appropriate set of optical filters for each unit.

Read more about Gasera Multipoint Sampler.

Contact our team for a demonstration in the field.
